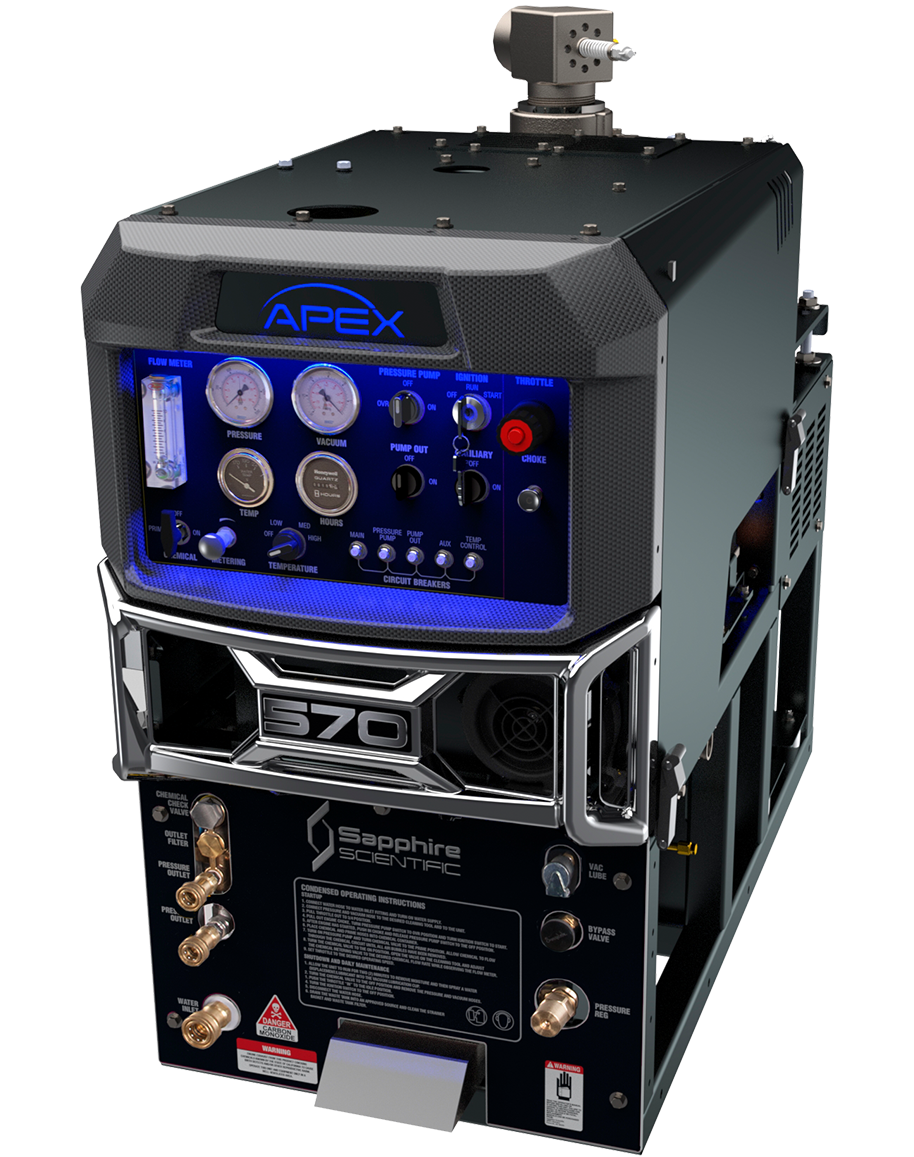

New Cerakote ceramic-coating lowers the heat radiation on all exhaust components by more than 30% to reduce component fatigue and extend your truckmount life—plus keep the van interior cooler! Powered by a liquid-cooled 31 HP Kubota gasoline engine, the Apex 570 uses the patented Sapphire Scientific triple-source thermal well system to deliver maximum consistent heat. Features a sleek new design and the superior performance you expect from Prochem and Sapphire!
The new standard in durability and reliable heat! Powered by a liquid-cooled cast iron Kubota engine, this unit uses the patented Sapphire Scientific triple-source thermal well system to deliver consistent high heat. Cerakote ceramic coating lowers the heat radiation on all exhaust components by more than 30%—extends truckmount life and helps to keep van interiors cooler.
Specifications:
Power Plant: Kubota WG972 31 HP liquid cooled cast-iron gasoline engine operating at 3000 RPM
Vacuum Pump: Gardner Denver trilobe HeliFlow HF408 helical positive displacement blower. Vacuum at 13 in. and flows up to 455 CFM
Solution Pump: General HTS201S producing up to 1500 PSI and 5 GPM at 1500 RPM
Waste Tank: 90 gallon marine grade aluminum. Optional 120 gallon high capacity waste tank
Features:
Quieter Helical Tri-Lobe HF 408 Blower produces less vibration and ensures better dry times
Through-frame drive belt cooling significantly reduces downtime by extending belt life
Cerakote ceramic coating on exhaust system minimizes heat and extends components’ service life
Patented thermal well design incorporates tube-and-shell heat exchanger to maximize heat transfer from engine to solution.
Easy-to-remove access panel and side hoods allows for quick service
Narrowest liquid-cooled slide-in on the market.
Also available with a 120-gallon tank, 1665-7215.
These are the Important Factors you Should Consider When Buying a Truckmount or Portable for Your Business.Product Type: TruckmountWidth: 22 inHeight: 43 inSeries/Model: Apex 570Pressure Rating: 1500 psiDepth: 50 inFlow Rate: 5 gpmHP Rating: 31 hpRecovery Tank: 90 galWeight: 1610.000
