Description
Series for maximum lift, or parallel for maximum air flow, with the AirFlow+ vacuum system, it’s your call!
The AirFlow+ vacuum system allows you to quickly change your vacuum motors from a series configuration to a parallel configuration in under a minute with no mechanical skill needed.
Whether you’re extracting flood water and need maximum lift, or cleaning tile and need maximum air flow, the Nautilus has you covered.

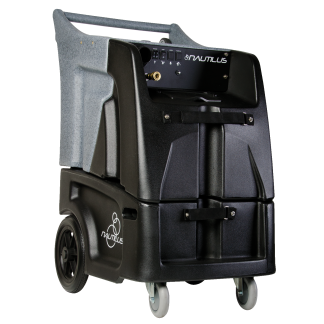

The Nautilus portable extractor achieved Platinum Certification from the Carpet and Rug Institute (CRI). The Platinum Certification is the highest designation available from CRI and highlights the superior cleaning and water extraction achieved with a Nautilus portable extractor.
Low monthly payments are available. Contact your distributor for more information.
Specifications:
Two 2-stage vacuum motors
200 PSI solution pump
1750 Watt Heater
12″ rear wheels and 5″ casters
Roto-molded polyethylene body
12 gal. solution and waste tank
Dimensions: 42″ H x 34″ L x 23″ W
116 lbs.
Standard Items:
Two 25′ extension cords
AH224 2″ Flash Cuff starter
AH201 2″-1.5″ Flash Cuff reducer
Vacuum Motor Specifications for Series and Parallel Configurations
Item #
CFM Ratings
Lift Ratings (inH20)
Max Air Watts
MX200M
Series: 97CFMParallel: 194CFM
Series: 130.9 Parallel: 81.8
250
MX200HM
Series: 97CFMParallel: 194CFM
Series: 130.9Parallel: 81.8
250
MX3-200M
Series: 99CFMParallel: 198CFM
Series: 187.8Parallel: 117.4
368
MX3-200HM
Series: 99CFMParallel: 198CFM
Series: 187.8Parallel: 117.4
368
MX500M
Series: 97CFMParallel: 194CFM
Series: 130.9Parallel: 81.8
250
MX500HM
Series: 97CFMParallel: 194CFM
Series: 130.9Parallel: 81.8
250
MX3-500M
Series: 99CFMParallel: 198CFM
Series: 187.8Parallel: 117.4
368
MX3-500HM
Series: 99CFMParallel: 198CFM
Series: 187.8Parallel: 117.4
368
MX1200M
Series: 97CFMParallel: 194CFM
Series: 130.9Parallel: 81.8
250
MX3-1200M
Series: 99CFMParallel: 198CFM
Series: 187.8Parallel: 117.4
368
MXE-200M
Series: 142CFMParallel: 284CFM
Series: 235Parallel: 147
673
MXE-500M
Series: 142CFMParallel: 284CFM
Series: 235Parallel: 147
673
CFM and Lift ratings are for two vacuum motors, while Max Air Watts are for a single vacuum motor only.
