National Flooring Equipment, Ride-On Scraper, 7700

Description

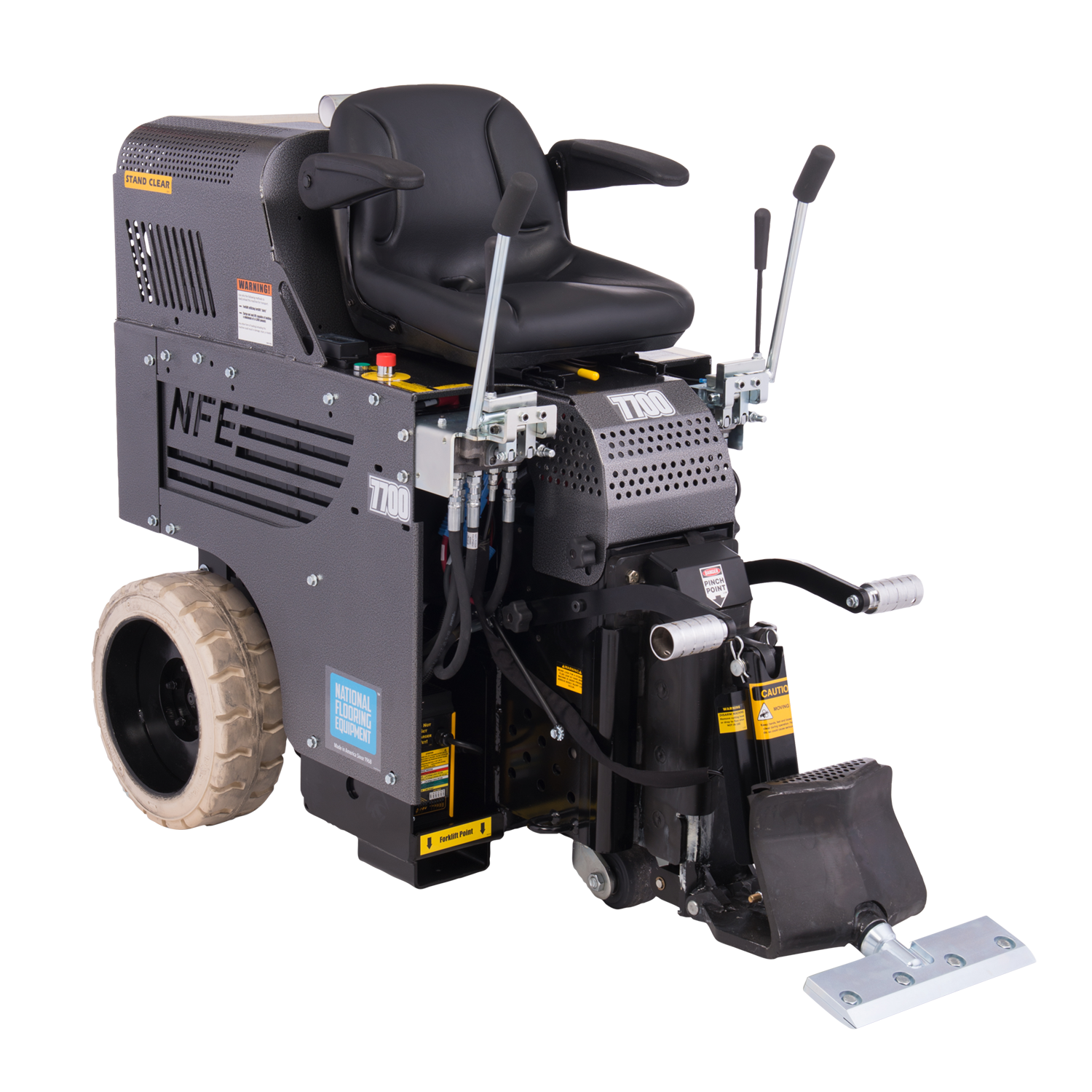

National 7700 All-Day Battery Ride-On Scraper
Powered by 12 200-amp hour batteries that exceed the industry standard, this machine is everything you need it to be. Bigger, heavier, and faster than the 5700, it is designed to remove difficult material and built to operate on almost any jobsite.
Specifications

Power Supply: Battery
Width: 29.5″
Height: 50″
Length: 63″
Weight: 2757 lb
Removable Weight: 185 lb front
Weight (machine only): 2572 lb
Speed: up to 200 ft/min
Voltage: 115
Frequency: 60Hz


Features
Safety

Automatic kill switch is triggered when the operator seat is vacant
E-stop knob for safety
Larger/deepened forklift pockets
Front debris deflector protects machine from loose material

Comfort

Ergonomic design includes movable foot pegs, taller handles, and an adjustable seat that allows for optimal operator comfort and the best possible line of sight
Hinged hood system for easy-access maintenance

Preformance

Precise hydraulic steering for maneuvering in tight spaces, zero turn radius, and continuous torque for higher removal rates and greater productivity
Quick-change swivel head blade holder
Dual-lift, hydraulic slide plate adjusts blade pitch and angle for continuous contact with the floor; standard on 7700
Nonmarking tires
AGM (Absorbed Glass Mat) batteries provide 100 percent power, speed, and torque for 90 percent of the batteries’ run cycle
Compact design fits through standard door frames and elevator doors
Heavy-duty 3000 PSI wheel motors
Front caster wheels allow increased maneuverability in tight spaces
LED light for increased visibility on the job site


Included with the 7700

5110-100: Transport Wheels
402929: 3/4 x 1-1/8 Wrench
73507-1: 7ft extension cord

Kit 5175 includes:

6277-BU: 45 degree, 3″ x 12″ self-scoring, bevel up
6284: 3″ x 12″ heavy-duty blade
7050-12: 12″ cutting head
7079-2: 2″ x 6″ angle shank w/ carbide tip
One-year manufacturer’s warranty on parts and labor

Learn more about scrapers.Product Type: Ride-On ScraperWidth: 29.5 inHeight: 50 inIncludes: 5110-100 Transport Wheels, 402929 3/4 x 1-1/8 in Wrench, 73507-1 7 ft Extension CordSpeed Rating: 200 FPMVoltage Rating: 115/230 VDepth: 63 inPower Source: BatteryWeight: 3088.000
