Description

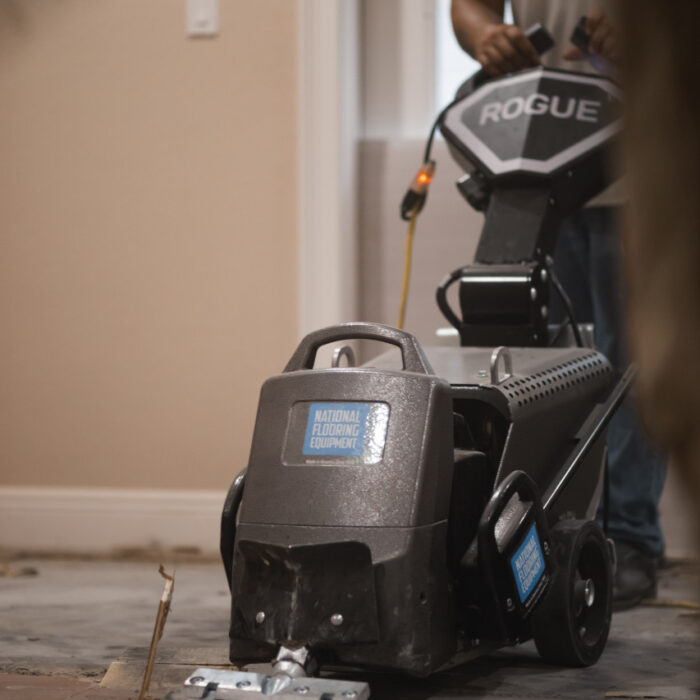

The Rogue is the newest Walk-behind Scraper from National. This all-electric scraper has an infinitely adjustable blade angle and works for both hard and soft goods removal. Simplified toggle controls, increased travel speed, and fewer loose parts are a few of the features that set this machine apart.
FEATURES:
FRONT END
Adjustable orbital speed from 0 – 1900 RPMs.
Quick change tooling holder provides transitions with the click of a button.
CONTROLS
Two thumb controls allow responsive, precision steering with very little input from the operator.
A simple toggle infinitely adjusts blade pitch and angle.
OPERATION
Built-in wheel de-couplers puts your machine into transport mode with no loose parts.
Forward and reverse wheel scrapers.
Front, middle, and side weights are removable and positionable.
This modular machine is designed to be pulled apart and transported with ease.
Power Supply
Electric
Max. Width
22.1″
56 cm
Width (weights forward)
19.4″
49 cm
Max. Height
45.3″
115 cm
Height (handle folded)
25.3″
64 cm
Max. Length
56.8″
114 cm
Length (handle folded)
41.4″
105 cm
Weight
466 lbs
211.4 kg
Removable Weight
177 lbs
80.3 kg
Weight (machine only)
289 lbs
131.1 kg
Speed
3 – 150 ft/min
0.9 – 45.7 m/min
RPM
600 – 2000 RPM
Voltage
120 V
Frequency
60 Hz
HP
Drive Motor – 1/3 HP (x2)
Orbital Motor – 3/4 HP
Amps (full load)
15 A
Included with Rogue:
7050-200: 3” x 6” x .062” Premium High Tempered Blade
7280-6: 6” Cutting Head, Grooved
7082-8GV: 2.5” x 8” Wood Floor Shank, Grooved
7281-1GV: 1” x 6” Carbide Tipped Angle Shank, Grooved
