Description
Rugged, High Performance, Compact, Coated Coils

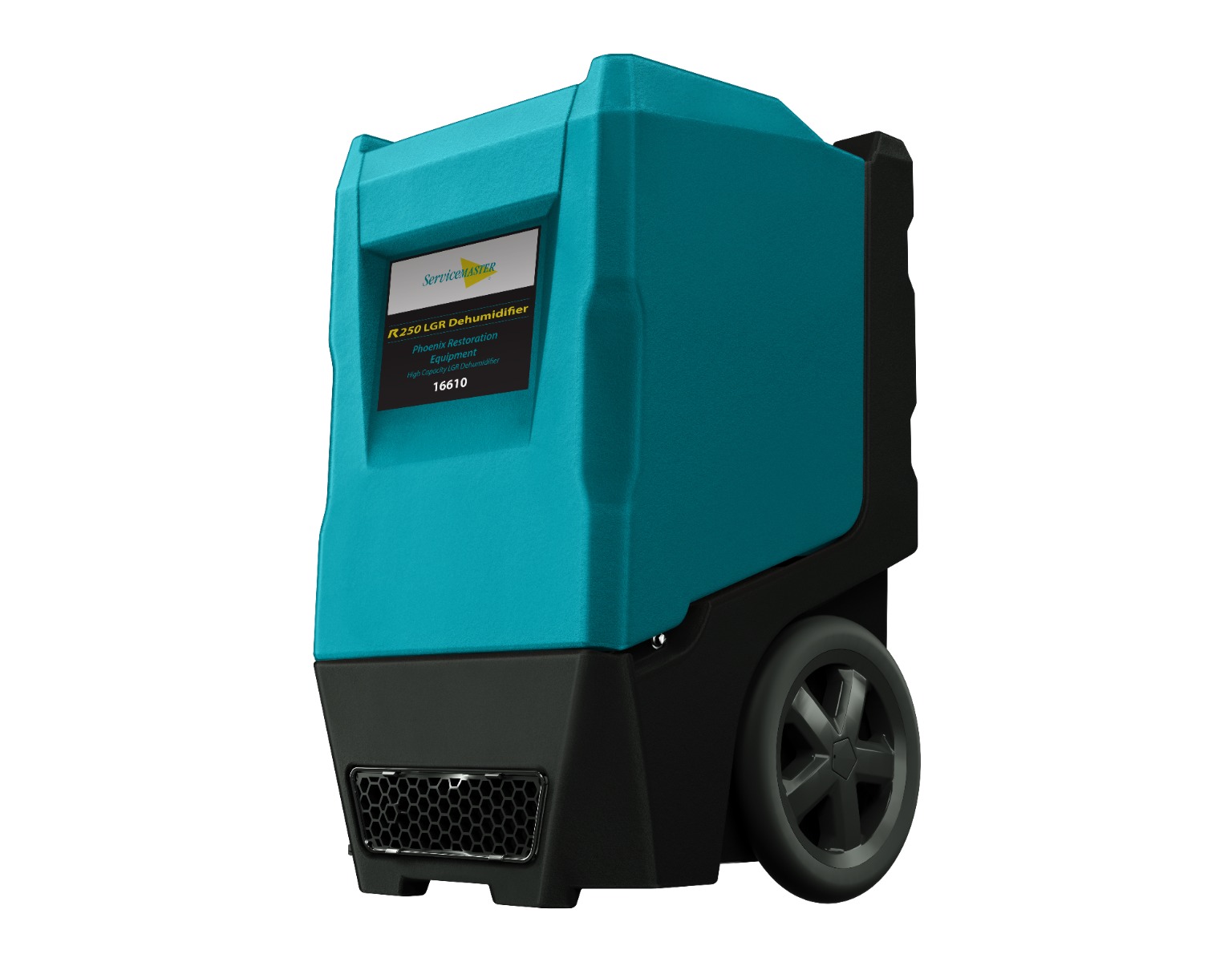

The Phoenix R250 has been redesigned from the inside out to be a rugged, high-performance dehumidifier. Phoenix is leading the industry by introducing epoxy coated coils. This new feature will extend the life of the coils, provide protection in corrosive environments, and maintain the coil’s heat transfer ability over the life of the coil.
We kept the outstanding handle used on the R200 along with patented ByPassâ„¢ Technology, increased airflow, multiple ducting options, and a pleated media filter. And, with some amazing Phoenix Engineering, the R250 removes the most water of the Phoenix rotomolds at 135 pints per day (AHAM) while drawing only 8.3 amps of electricity, making it one of the smallest, lightest XL category LGRs on the market.
Like every Phoenix, the R250 features effective air filtration with a pleated media MERV-11 filter. Multiple ducting options are available with 12″ intake duct tabs on the lid and a wire duct collar for 10″ lay-flat duct on the exhaust.
The outlet grill is configured to accept a variety of thermohygrometer probes (e.g. Vaisala, Humiport, etc.) for taking accurate psychrometric readings. The 25-foot power cord and 33-foot condensate hose store conveniently inside the hinged lid.
The R250 marks Phoenix Restoration Equipment’s continuing commitment to technology, performance and durability.
Features
Epoxy Coated Coils
Removes 135 pints per day at AHAM (80°F/60% RH)
Draws only 8.3 amps and removes 6.0 pints/kWh
310 CFM; faster drying and superior static pressure for ducting
Hi-Temp Operation up to 110°F
Heavy-Duty Condensate Pump
Compact Design
Telescoping Handle
Patented ByPassâ„¢ Technology
Recessed 12″ Wheels
Pleated 12″ x 12″ x 1″ MERV-11 Media Air Filter
Stacks easily reducing storage space
Technical Specifications
Power
8.3 Amps, 120 VAC, Grounded
Water Removal
135 Pints/Day @ AHAM (80°F, 60%)
Blower
310 CFM
Operating Range
33°F to 110°F
Filters
12″ x 12″ x 1″
Weight
109 Lbs.
Xactimate Code: WTRDHM>>Product Type: SM Branded DehumidifierColor: RedLength: 20 inWidth: 20 inHeight: 33.5 inSeries/Model: R250 LGRTemperature Rating: 33 to 110 deg FVoltage Rating: 120 VACAmperage Rating: 8.3 AAir Flow Capacity: 310 cfmCord Length: 25 ftMERV: 11.0Humidity: 60% RHWater Usage Rate: 135 pt/dayFilter Size: 12 in x 12 in x 1 inRefrigerant Type: R-410AWeight: 105.000Warranty: 5 years, 1 year 100% of Parts and Labor, 2-3 years 100% pump part only, 2-5 years 100% of sealed refrigeration system parts
