U.S. Saws, Tuc-Pointer Assembly

Description

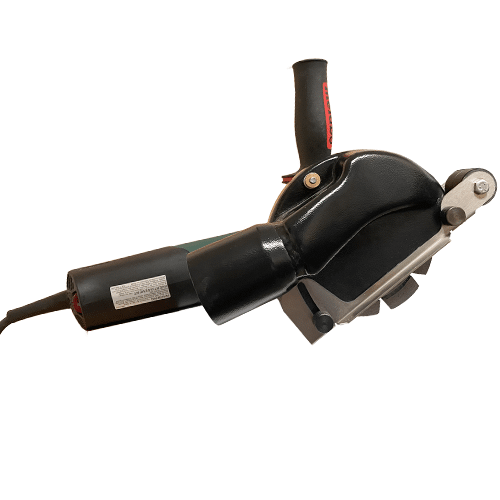

The U.S.SAWS 5” Crack chaser is a handheld crack chasing saw designed to rout out random cracks before filling. This saw is also used for cutting repair patches in concrete surfaces where a dust-free environment is needed. It can also be used for joint cleanout and joint fill removal in areas where the larger joint cleanout saws will not fit. The full metal blade guard protects the operator, and the polycarbonate dust shroud is durable enough to hold up to abrasive concrete dust. This Premium model is powered by a Metabo WEV15-125 13.5 Amp 2,800-9,600 RPM variable speed grinder and will cut up to 1-1/4” deep with a 5” blade. This saw can use a 4”, 4.5”, or 5” blade.



Hand-Held Tuckpointer/Crack Chaser Assembly

Small and lightweight system for repair applications and for cutting out mortar or grout joints

Cuts horizontally or vertically

Controls dust for cleaner work site when used with optional vacuum system

1-1/4″ maximum cutting depth

Assembly includes grinder, shroud and adapter ring



Part Number

SX55014

Grinder Make/Model

5″ Metabo W9-115

Power

8.5 Amp Electric

RPM

10,500

Power Requirements

120V, 60Hz

Max Cutting Depth

1-1/4″

Blade Diameter

4″, 4.5″ or 5″ Dry Diamond

Blade Width

.090″*, .125″*, .250″, .375″

Blade Arbor

7/8″

* Requires spacer (sold separately)











































5″ Crack chaser Assembly with Metabo 15-125 13.5 Amp Grinder

US Saws 5″ Crack Chaser is a handheld saw designed for routing out random cracks or cutting concrete while collecting the dust.

Powered by a Metabo 15-125 13.5 amp 2,800-9,600 RPM grinder which is good for heavy duty continual use.

Metal blade guard for safety

Polycarbonate dust collection shroud is extremely abrasion resistant to hold up to abrasive concrete dust and had a 5 year warranty

Meets OSHA dust collection requirements when used with approved dust collector

Compatible with 4″, 4.5″ and 5″ Blades including “V” blades

Small and lightweight system for vertical or horizontal surface crack repair applicationsWorks great for cutting out mortar or grout jointsControls dust for a cleaner work site when used with an optional vacuum system1-1/4″ maximum cutting depth





Assembly includes: grinder, shroud, and adapter ring





Part Number

SX55010

Grinder Make/Model

5″ Metabo WE15-125

Power

13.5 Amp Electric Variable Speed

RPM

2,800-9,600

Power Requirements

120V, 60Hz

Max Cutting Depth

1-1/4″

Blade Diameter

4″, 4.5″ or 5″ Dry Diamond

Blade Width

.090″*, .125″*, .250″, .375″

Blade Arbor

7/8″

* Requires spacer (sold separately)
