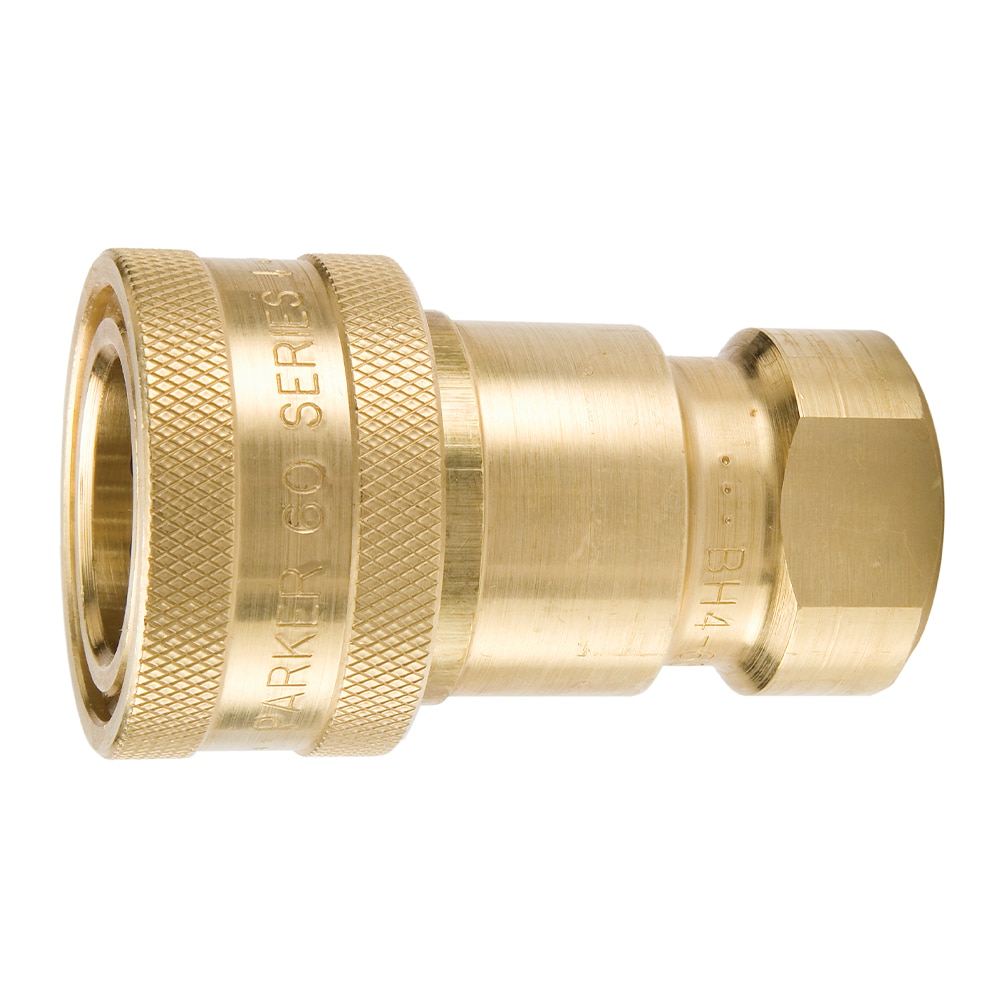

1/8″ Female Brass Quick Connect FPT

Description

60 Series Couplers (hydraulic, fluids, gas, steam) up to 5000 psi, connect with ISO 7241 Series B, 60 Series Nipples. Parker’s 60 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 Series B. These general purpose quick couplings are available in a wide range of sizes and materials to be versatile for use with several fluids, including high temperature steam. Parker’s 60 Series is multi-purpose for a variety of applications and pressures up to 5000 psi. Steam version couplers are brass with double interface O-rings and stainless steel locking balls. Seal material is Ethylene Propylene and the 3/8 in size has a grip-ring sleeve for easy operation when wearing gloves.Globally interchangeable with other manufacturer’s couplings complying to ISO 7241 Series BMulti-purpose coupling, widely used in varied applicationsSteel couplers have a hardened sleeve for strength and durabilityMetal valve stop prevents flow checking to provide steady performanceSteam version couplers have Ethylene Propylene seals to withstand high temperatures and the 3/8 in has a grip-ring sleeve for easy operation when wearing glovesBrass couplers have double O-rings for redundant sealing and stainless steel locking balls for corrosion-resistance316 stainless steel couplers have fluorocarbon seals for chemical compatibilityOptional coupler sleeve lock helps to prevent accidental disconnectionCompliance and Certifications: Prop65Application: Food and Chemical Processing, Water and Coolant Lines, Thermal Management, High Pressure Fluid Transfer, High Temperature Fluid Transfer, Mobile Equipment, Cleaning Equipment, Dry Cleaning, Steam Systems ApplicationsProduct Type: Hydraulic Quick Connect CouplingSize: 1/8 inMaterial: BrassSeries/Model: 60Temperature Rating: -40 to 250 deg FConnection Type: Female NPTFPressure Rating: 3000 psiFlow Rate: 0.8 gpm, 3 LpmHex Size: 0.68 inThread Size: 1/8 in – 27Coupling Half: Female CouplerWeight: 0.200
