Description

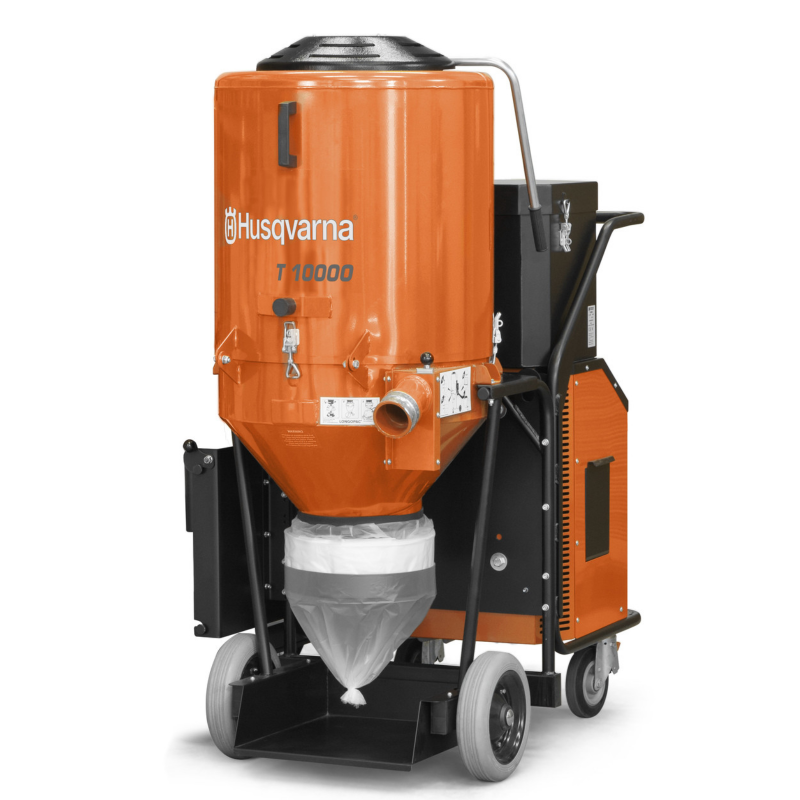

T 10000 is an effective industrial dust extractor to match the highly productive Dual Drive Technology™ grinding machines Husqvarna PG 820 RC, PG 820, PG 680 RC, PG 680 as well as shavers, shot blasters and saws. Also perfect together with our pre separator C 5500 that easily can be mounted on the dust extractor. T 10000 is ideal for heavy-duty work and exacting demands on dust extraction. Powerful motor with ample capacity. The machine can deal with materials that are difficult to handle, such as grinding dust and demolition materials in a wide variety of applications. Has a reliable filter system with high collecting efficiency and a long filter life, and can deal with large quantities of fine dust. Equipped with three tested and certified HEPA class H13 filters ensuring clean air exhaust. The primary sock-style pre-filters provide long, uninterrupted service and can be cleaned efficiently from outside the tank via Jet Pulse air pressure. The Longopac® bag hose system ensures simple, dust-free bag changes.
Features:
Efficient filtration system: The three separate filtering stages result in longer working time between filter cleaning. The dust is filtered through a cyclone chamber, which separate the heaviest parts, up to 95% of the dust, before the washable main filter. The HEPA micro filters are individual tested and certified to capture 99.99% of the remaining silivia dust in the respirable fraction (0.3µm).
Durable design: Corrosion-resistant steel clamps, welded frame with dust bag platform and durable steel handle make it ready to serve for many years.
Excellent stability and mobility: The slim design, solid non-marking tires, swivel casters and hitch for attaching a separator allows for excellent mobility and stability.
Easy and efficient filter cleaning: The Jet Pulse filter cleaning system ensures high continuous airflow thanks to easy and efficient cleaning of the conical main filter without opening the machine.
Applications
Large-scale projects that demand substantial dust extraction.
Grinding dust and demolition materials in a wide variety of applications.
Benefits
Three separate filtering stages collects dust from the heaviest to the finest dust particles.
Individually tested and certified HEPA filters rated at 99.99% @ 0.3 microns.
Longopac(R) bag hose system ensures simple and safe dust bag changes.
Jet pulse filter cleaning system ensures high continuous airflow due to easy and efficient cleaning of main filter without opening the machine.
Motor
Phases: 3-ph
Voltage: 480 V
Rated current: 21 A
Rated input power: 12.6 kW
Specifications
Air requirement: 816 m³/h
Dimensions
Weight: 336 kg
Product Type: HEPA Dust CollectorIncludes: 2 in x 25 ft Crush-proof Hose, Wand and Floor Tool, 50 amp Distribution Box, Female and Male 3 in and 2 in Cam-lock ReducersSeries/Model: T10000Voltage Rating: 480 VAmperage Rating: 21 AAir Flow Capacity: 480 cfmOverall Length: 55 inHP Rating: 16.9 hpOverall Width: 29 inWater Lift: 120 inPhase: 3.0Overall Depth: 68 inDrum Diameter: 3 inVacuum Pressure: 28 kPaUPC: 805544261692Weight: 740 lb
