Description
PATRIOT PRO – A VACUUM BUILT FOR PROFESSIONALS.

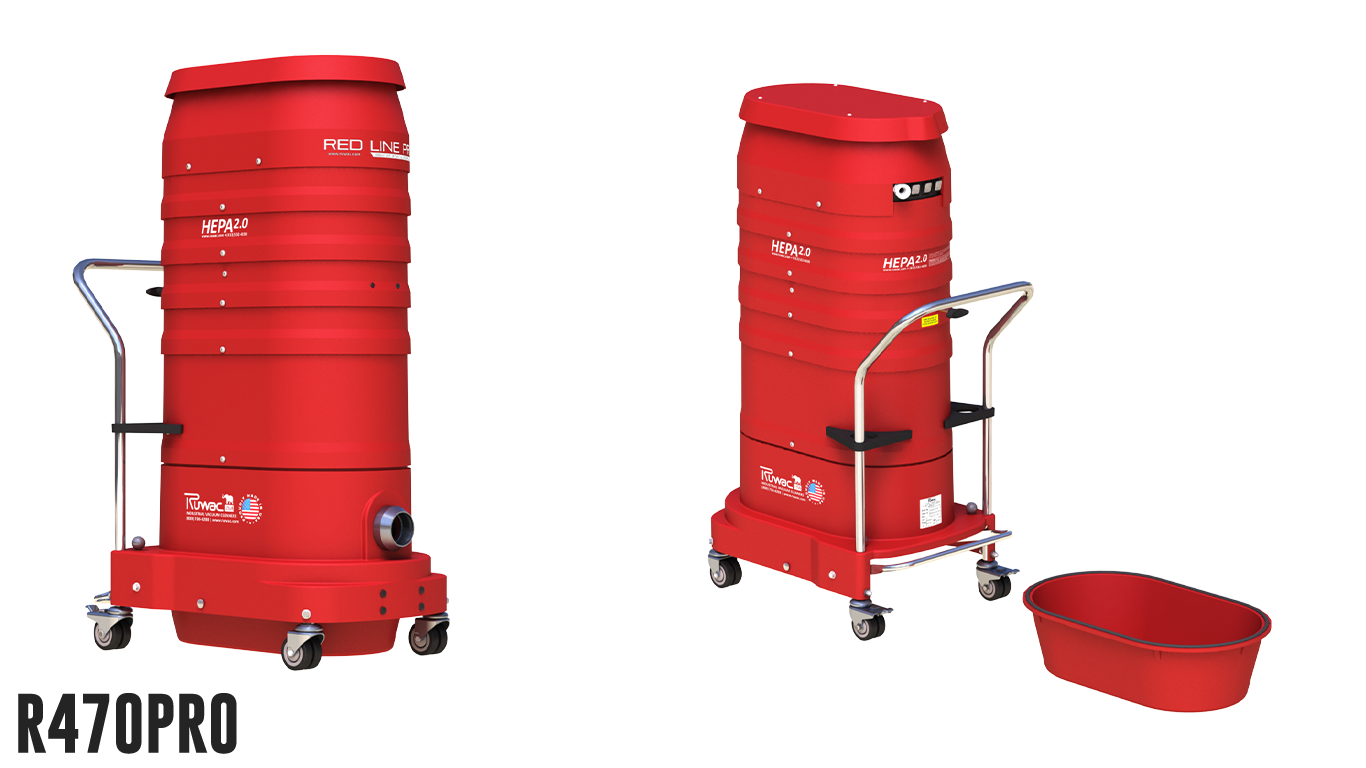

The R470 “Patriot Pro†is Ruwac’s four motor, 470 CFM single phase industrial vacuum system. With its mobile design and 220v power, the Patriot Pro is perfect for large platform Surface Preparation concrete applications. Engineered for durability, the Patriot Pro will be on your job sites for a VERY long time. The Patriot Pro also has a portable Direct Bagger design!
Industry Leading HEPA Filtration:
Equipped with industry leading MicroClean primary filtration, HEPA 2.0 secondary filtration and an external filter cleaning mechanism, the Patriot Pro is OSHA compliant right off the skid!
Fully grounded to protect against static build-up
Durable “Bulletproof†compression cast modular composite housing will never dent or rust — guaranteed for life!
Industry-leading MicroClean filtration is 99% efficient @ 0.5 Microns — 3-year filter life guarantee!
Manual filter shaker system allows you to clean the primary filter without having to disassemble your vacuum
Easy to empty 9 gallon foot-actuated dustpan
HEPA 2.0 secondary filtration 99.97% efficient @ 0.3 microns
3″ heavy duty casters
3 Year Extended Pro-Series Warranty
OSHA compliant out of the box
Motor Rating:
(4) 1200 Watt Motors / 6.4 Hp
Voltage:
240 Volts
Amps:
24 Amps
Duty Cycle:
Intermittent
Vacuum Rating:
97″ H2O
Volume Rating:
470 CFM
Primary Filter Efficiency:
99% @ 0.5 Micron
Primary Filter Area:
28sq. ft.
Secondary Filter: HEPA 2.0:
99.97% @ 0.3 Microns
Primary Filter Cleaning:
Heavy Duty Manual Shaker
Inlet Connection:
2 3/4″ w/ Aluminum Cast Deflector
Housing Material:
Compression Cast “Bulletproof” Composite Modular Housing
Rapid Cool :
Advanced “Rapid Cool” Heat Displacement
Distribution Box:
*Shown with Distribution box with Fused Motor and Auxiliary Protection, 230V, 3-Phase, 80amp
Casters:
3″ Heavy Duty Non-Marking Double Casters
Collection Capacity:
9 Gallon
Collection Pan Release:
Foot Lever-Activated Release Bar
Power Cable:
30 ft. High Visibility Yellow Cord
The Polished Concrete ProcessProduct Type: Intermittent Duty Industrial Vacuum SystemCapacity: 9 galVoltage Rating: 240 VAmperage Rating: 24 AConnection Size: 2-3/4 inAir Flow Capacity: 470 cfmCord Length: 30 ftHP Rating: 6.4 hpFilter Efficiency: 99% at 0.5 um Primary/99.97% at 0.3 um SecondaryPower Rating: (4) 1200 WHousing Material: Compression Cast CompositeCaster Size: 3 inWeight: 342.000
